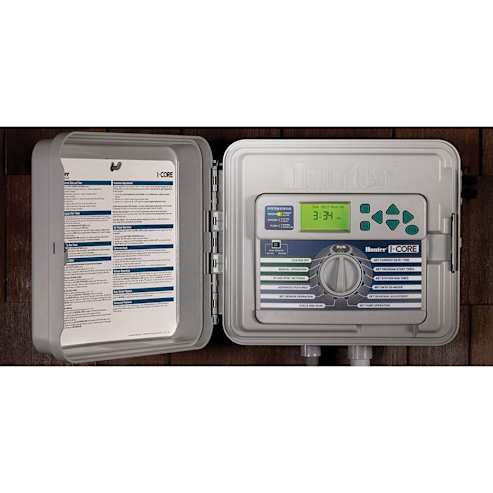

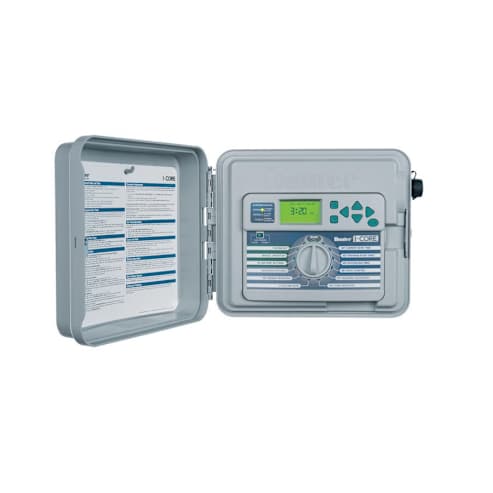

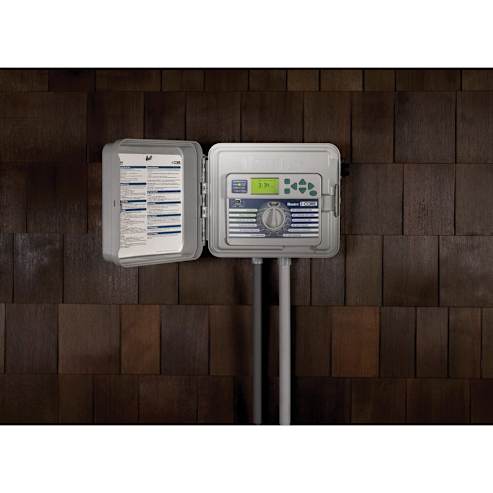

Shop for Hunter IC600PL 6 station Controller
6 stations expandable to 30 with expansion modules (sold separately)
4 independent irrigation programs (8 start times each) allow for customized scheduling
12-hour maximum station run time provides flexibility for lower-flow zones
Features and Benefits
The I-Core is Hunter's controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL® two-wire module can even expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ROAM XL remote and the built-in conservation-focused Solar-Sync®, I-Core's possibilities are all but limitless.
Product Details
Any 2 programs can operate simultaneously for more efficient watering
2 sensor inputs
1 P/MV output for pump start relay and master valve activation
Flow-monitoring capabilities provide real-time water usage data
Programmable No Water Window prevents all irrigation for a specified time frame
High-visibility, backlit display with 6 selectable languages
4 Independent irrigation programs (8 start times each) allow for customized scheduling
12 Hour maximum station run time provides flexibility for lower-flow zones
Any 2 programs can operate simultaneously for more efficient watering
1 Pump/Master valve output for pump start relay and master valve activation
Flow-monitoring capabilities provide real-time water usage data
Programmable no water window prevents all irrigation for a specified time frame
High-visibility, backlit display with 6 selectable languages
EASY RETRIEVE™ Memory - A manual back-up utility that stores complete controller scheduling and setup information in back-up memory, this allows the saved watering schedule to be restored at any time, this can be used to set a controller back to its initi
One touch manual start and advance - Allows any program to be started manually by simply pressing and holding the right arrow key, advance through stations in a program by pressing the right arrow key again
The Programmable Rain Delay feature incorporates a user specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation, this will prevent watering during an extended period
Case Quantity
4
Fixed or Modular
Modular
Input Voltage
120/230 VAC
Material
Plastic
Mounting Type
Wall Mount
Number of Stations
6 Station
Output Current
1.4 A
Output Voltage
24 VAC
UPC
40611698157297
Use Location
Indoor/Outdoor
