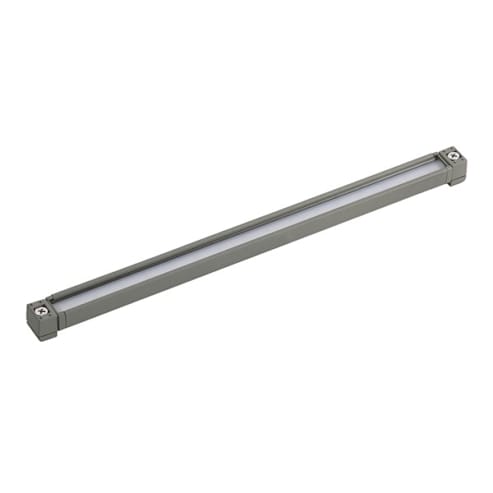

The 12 V LED hardscape light is an integrated, fully sealed LED fixture with a 270° pivot rotation from a mounting bracket which allows you to place the light precisely where its needed. The 12 in. length option fits most design applications with a 3000K color temperature in a textured gray (GRY) finish. Custom optics ensure smooth, uniform light distribution virtually eliminating any hotspots or glare. Integrated with a 4 kV surge protection to defend against power surges and irregularities
The adjustable fixture can pivot 180° for direct to surface install and pivot 270° when installed with mounting bracket, usable range is installation dependent
Offering a custom optical lens that diffuses light to deliver smooth, uniform output while eliminating hotspots and glare that may reflect off walls or installation surfaces
Can be installed either as a traditional downlight or as an uplight, on or off mounting bracket
Housing cavity and electronics are encapsulated to help keep all critical components protected against the elements
4000 V system surge protection helps guard against system power surges and irregularities

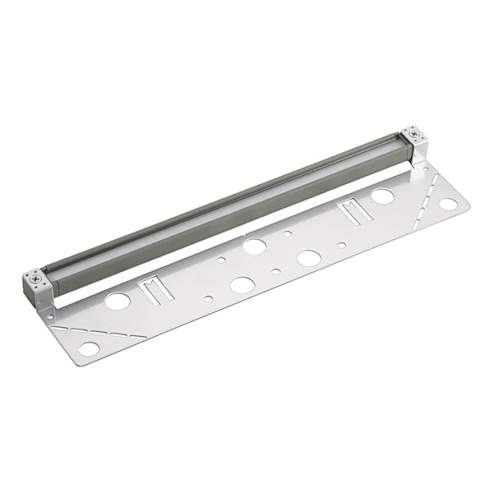

Customizable mounting bracket with breakaway corner tabs that allow for easier installations in retrofit applications
Bracket is designed as an installation template with centering notch and screw pilot holes for installation guidance when mounting off bracket
Average Life
40000 hr
Beam Angle
108°
Bulb Type
Integrated LED
Color Temperature
3000K
CRI
80
Finish
Textured Gray
Fixture Wattage
1.9 W
Housing Material
A380 Aluminum
Includes
4000 V System Surge Protection, Mounting Bracket, 2 Gel-Filled Wire Nuts and Locknut, 18/2 SPT-1W 84 in. Lead Wire
Lamps Included
Yes
Lamp Wattage
1.9 W
Lens/Shade Type
Optical Diffused
Lumens
85 Lumens Delivered
Number of Lamps
1
Voltage
9 to 15 VAC Operating, 12 V
Warranty
15 years Limited Consumers, 10 years Limited Commercial Purchasers
Wire Length
84 in.
UPC
783927533737
