Rain Bird ESP-TM2 8 Station WiFi Ready Indoor/Outdoor Controller

Part #

Rain Bird ESP-TM2 8 Station WiFi Ready Indoor/Outdoor Controller

Part #
Login or Register to view pricing and availability
Free Shipping on Orders over $149

Product Image Feedback

Shop for Rain Bird ESP TM2 8-Station Controller

  • Up to 8 zones
  • Quick and easy to install
  • Simple to program

Features and Benefits

  • Controls up to 8 sprinkler zones.

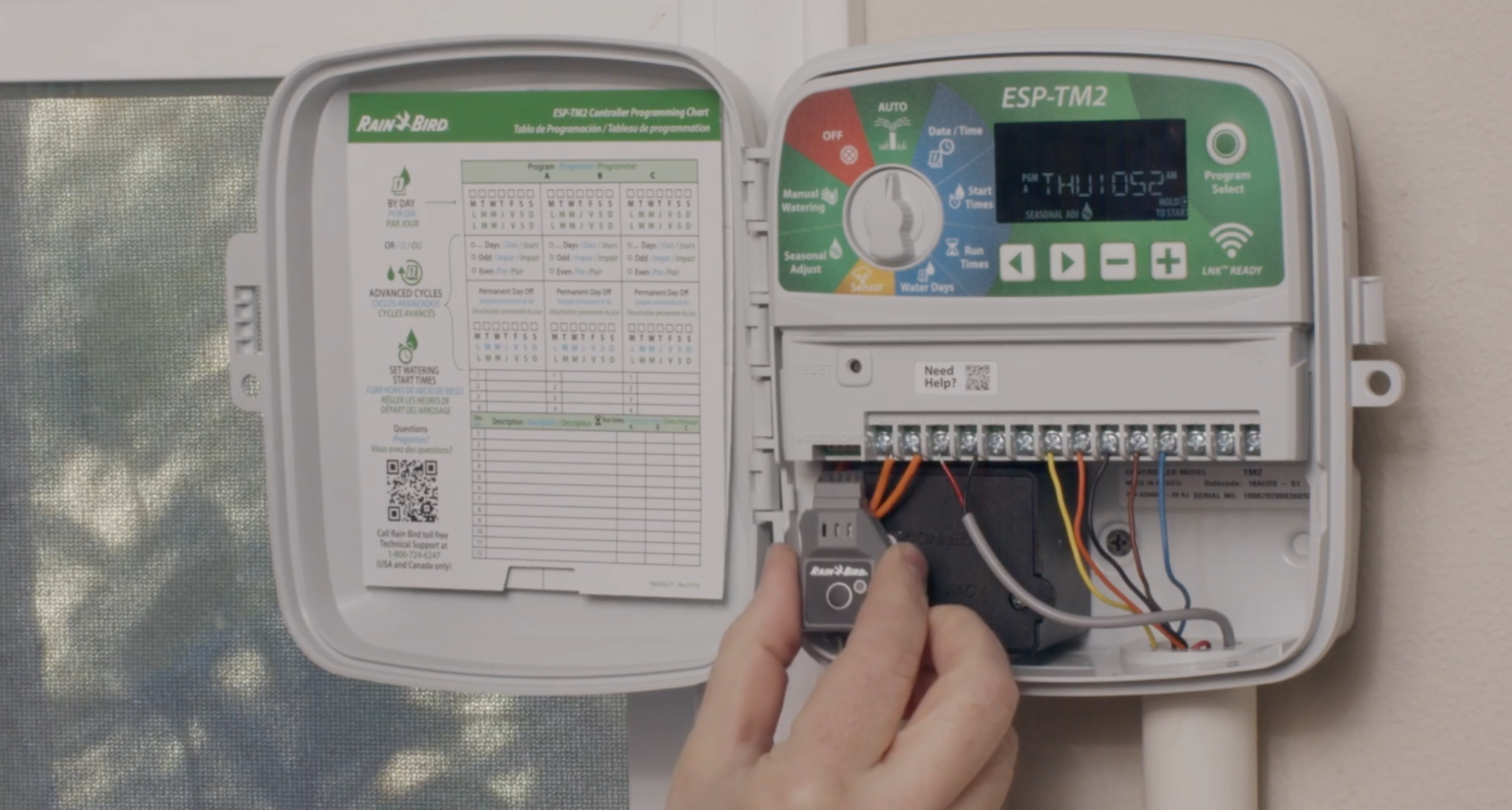

  • Quick to Install. Suitable for indoor or outdoor installations. Factory-installed 6’ outdoor-rated power cord for your convenience
  • Simple to Program. Quickly program a schedule in just 3 steps. NEW large back-lit LCD display for improved visibility in low-light and direct sunlight conditions WiFi Connectivity
  • Advanced Features. Contractor Default allows you to easily save and restore your custom schedule. Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed.

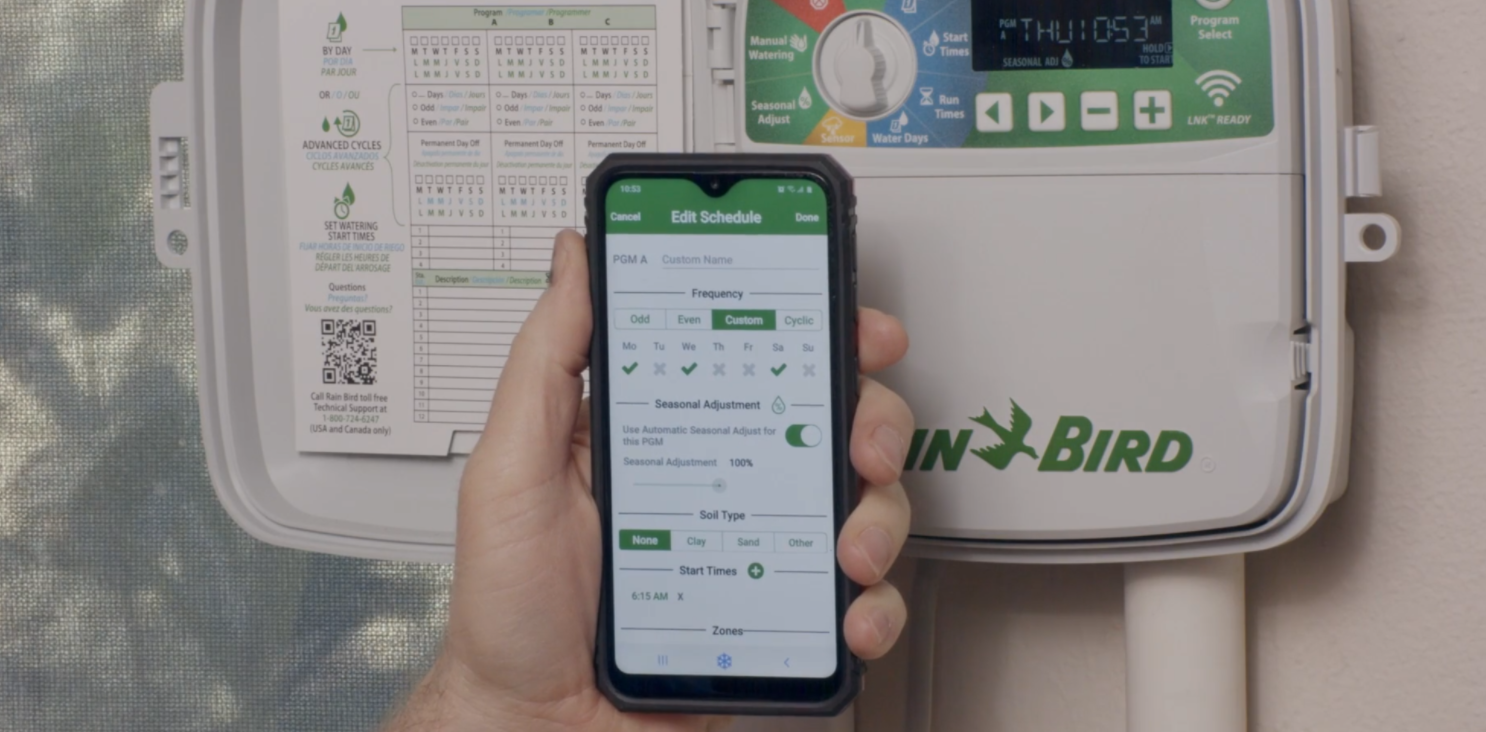

  • Compatible with the new Rain Bird LNK WiFi module (sold separately). Simply plug in the module to access, operate and monitor your irrigation system from any mobile device.

The ESP-TM2 irrigation controller is the perfect option for basic residential solutions. Building upon Rain Bird’s legacy of The Intelligent Use of Water, this controller offers simple water-saving features that you will actually use. With the flexibility of 3 programs and 4 start times available per program, you can tailor your watering schedule to your landscape’s needs. The ESP-TM2 provides the Extra Simple Programming interface you are familiar with in a controller that is built to last! Best of all, you can upgrade the ESP-TM2 into a WiFi-enabled controller by simply installing a new LNK WiFi Module (sold separately), without having to replace the entire unit.

More Information

Zones/Stations 8
Indoor/Outdoor Indoor/Outdoor
Controller Type Fixed Station

  • Width: 7.92 in. (20,1 cm)
  • Height: 7.86 in. (20,0 cm)
  • Depth: 3.51 in. (9,0 cm)

Features Delay Between Stations, Manual Watering, Master Valve/Pump Start, Non-volatile Memory, Rain Delay, Seasonal Adjust, Water Budget
Programs 3
Program Day Cycles Custom days of the Week, Odd days, Even days, Cyclical (water every x days), Calendar day off, Event days off
Start Times per Zone/Program 4
Electrical Specifications

  • Input required: 120VAC (±10%) @ 60Hz
  • Output: 1A at 24VAC
  • Master Valve/Pump Start Relay

External battery backup is not required. Nonvolatile memory permanently saves the current programming and a 10-year life lithium battery maintains the controller's time and date during power outages.
Certifications UL, cUL, FCC Part 15b, IP24

Rain Bird
Part Number:
Wi-Fi Enabled:
Output Voltage:
24 VAC
Output Current:
1 A
Number of Stations:
8 Station
Mounting Type:
Wall Mount
Input Voltage:
120 VAC +/-10%
Frequency Rating:
60 Hz
Fixed or Modular:
