• Only Accepts Male Nozzles
• No Check Valve
• No Nozzle (Flush Plug Only)
• Pop-Up Height: 6 inches

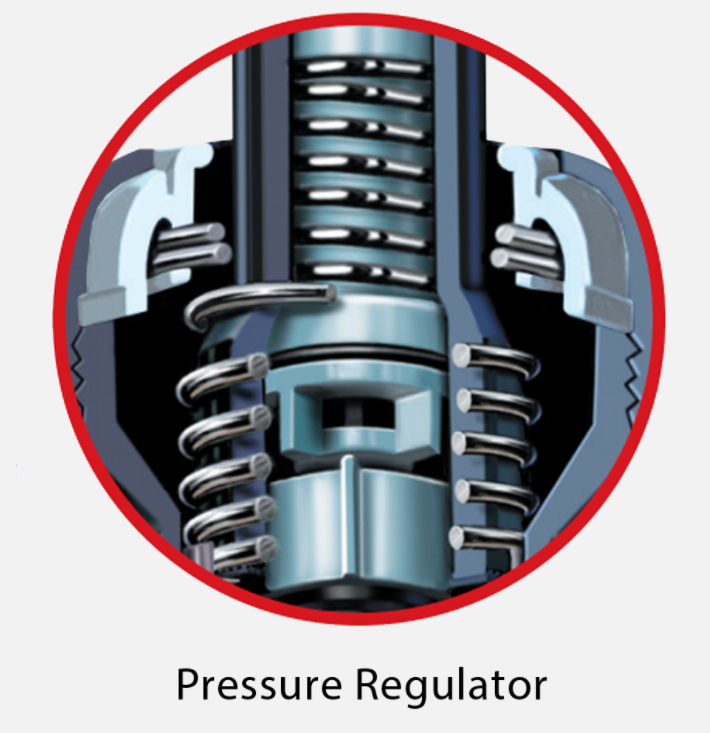

Toro® 570Z Series spray heads provide everything needed for residential and commercial contractors to satisfy all installation and retrofit requirements. In combination with Toro spray and rotating nozzles, 570Z Series spray heads can be configured in hundreds of combinations and present an unparalleled range of flexibility. Available in 2”, 3”, 4”, 6” and 12” models with both bottom and side inlet thread options, Toro 570Z Series spray heads are further available with patented in-stem X-Flow® Technology and Pressure Regulating water-saving features. Trusted for over 25 years, Toro's 570Z Series spray heads are the ideal choice.

• Corrosion-resistant stainless steel retraction spring
• All models shipped with an installed flush plug

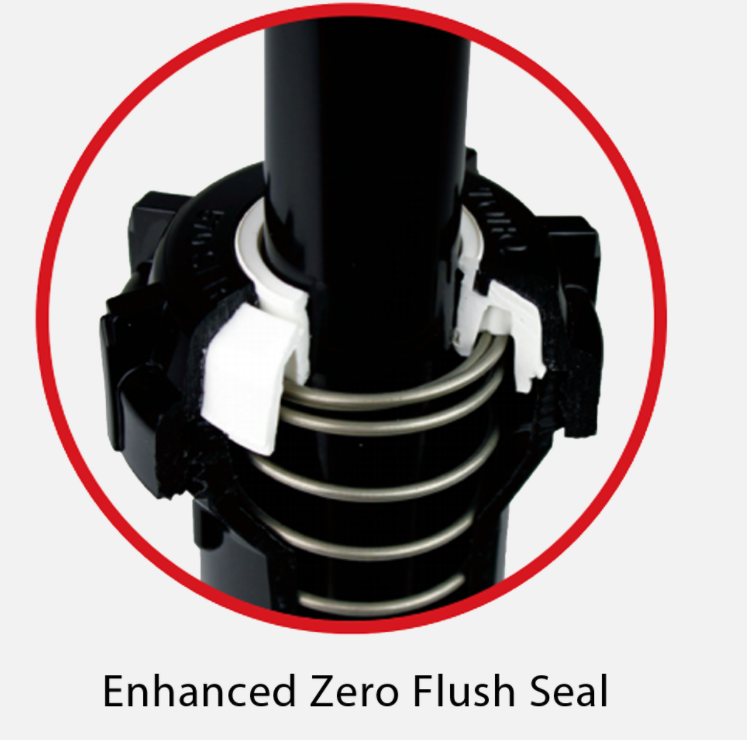

Zero Flush Wiper Seal

The elimination of flushing on pop-ups allows for more sprinklers to be installed per zone.

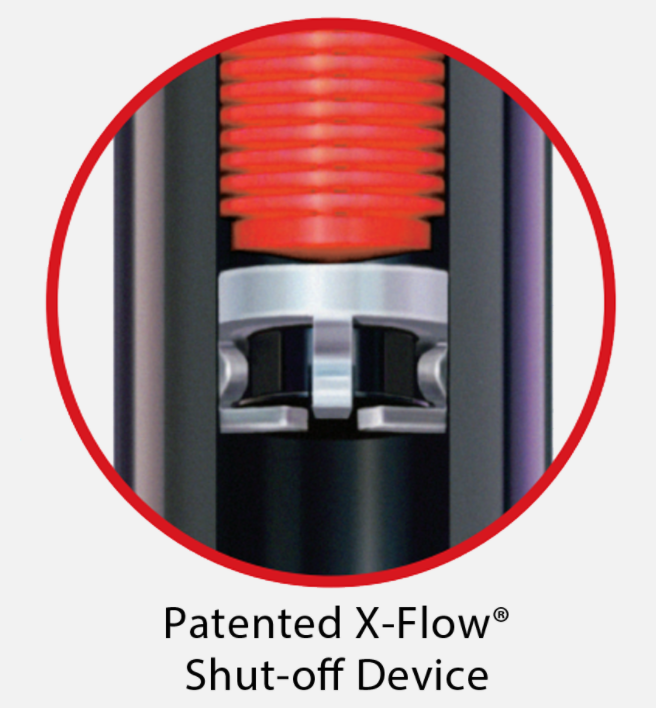

Patented X-Flow® Technology

The X-Flow in-stem flow shut-off device is built into the riser and restricts water loss by 99% should the nozzle be removed or damaged. The exclusive X-Flow device greatly reduces water waste, landscape erosion, and wet hardscape safety concerns. Furthermore, X-Flow allows for ’dry’ nozzle and filter replacement or system maintenance while the system is running.

Ratcheting Riser

Quick and precise arc adjustment on all pop-up models.

• Serviceable Check Valve (570CV) prevents low-head drainage on elevation changes of up to 10 feet (not compatible with Side Inlet models)
• Replacement Zero-Flush seal (570SEAL)
• Effluent water indicators:
• Effluent Shrub Adapter (102-1231)
• Effluent snap-on cap cover (89-9752)
• Effluent Cap with seal (102-1211)
• 6” Riser Extender (570-6X)
• 6” Stationary Riser (570-SR-6) [½” male-threaded inlet]
• 18” Stationary Riser (570-SR-18) [½” male-threaded inlet]
• Riser Pull-up Tool (89-6395)
• Nozzle Adjustment Key (89-7350)
